Drop-in RF component
C5BR4
5.2 – 5.7 GHz
TABS

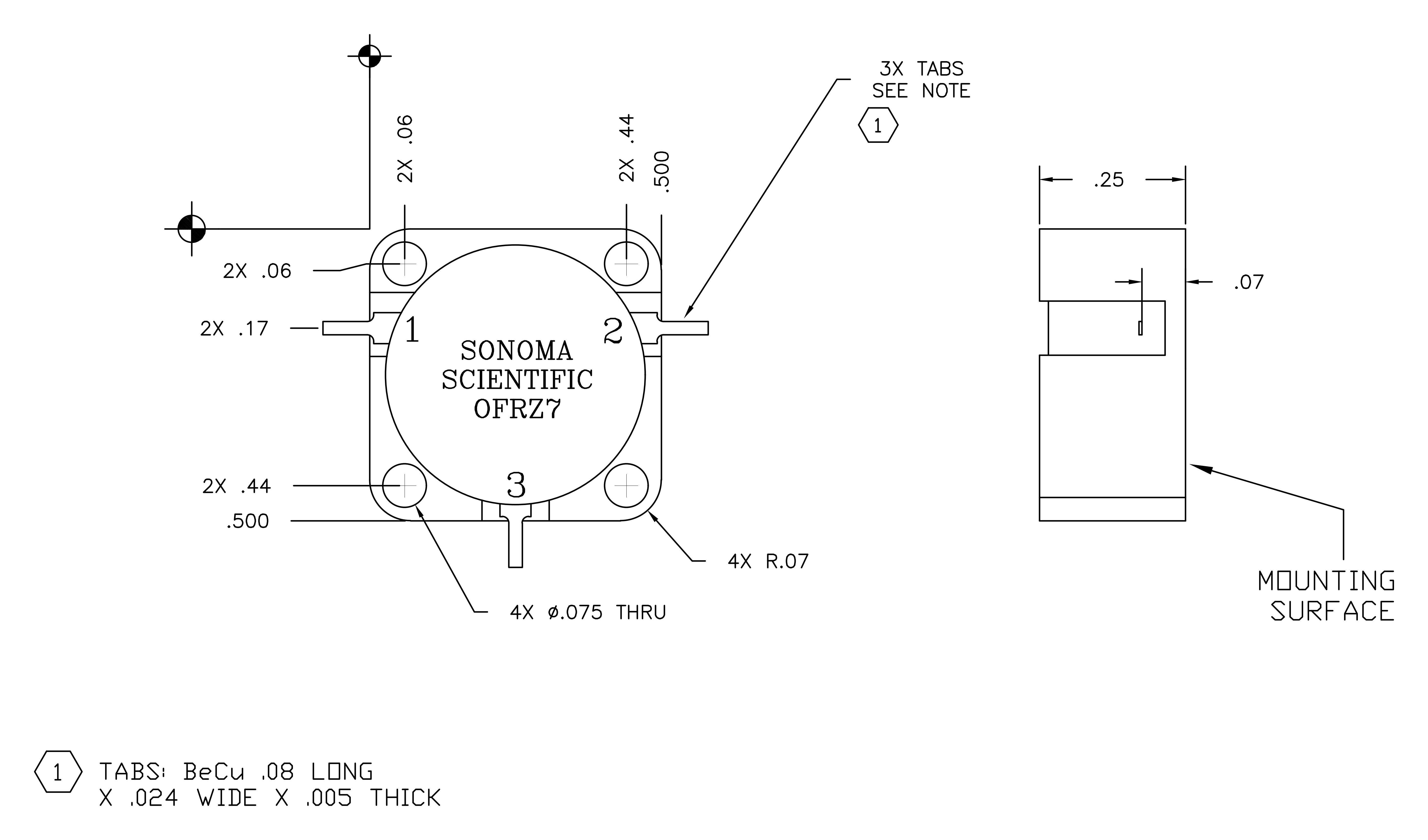

Product illustration
- Isolation
- 20 dB
- Insertion loss
- 0.5 dB
- Forward power
- 30W / 100W pk
Need different specifications? Explore custom solutions for your requirements.
Product datasheet
View datasheet
(PDF, opens in a new tab)
Specifications
- Model / base part
- C5BR4
- Product type
- Circulator
- Start frequency
- 5.2 GHz
- Stop frequency
- 5.7 GHz
- Isolation
- 20 dB
- Insertion loss
- 0.5 dB
- VSWR
- 1.22:1
- Operating temperature (°C)
- 0° to +70°
- Configuration / style
- Drop-in
- Connection
- TABS
- Forward power
- 30W / 100W pk
- Size (inches)
- .50 X .50 X .25
Specifications shown are for reference. Contact Sonoma Scientific for detailed specifications.
